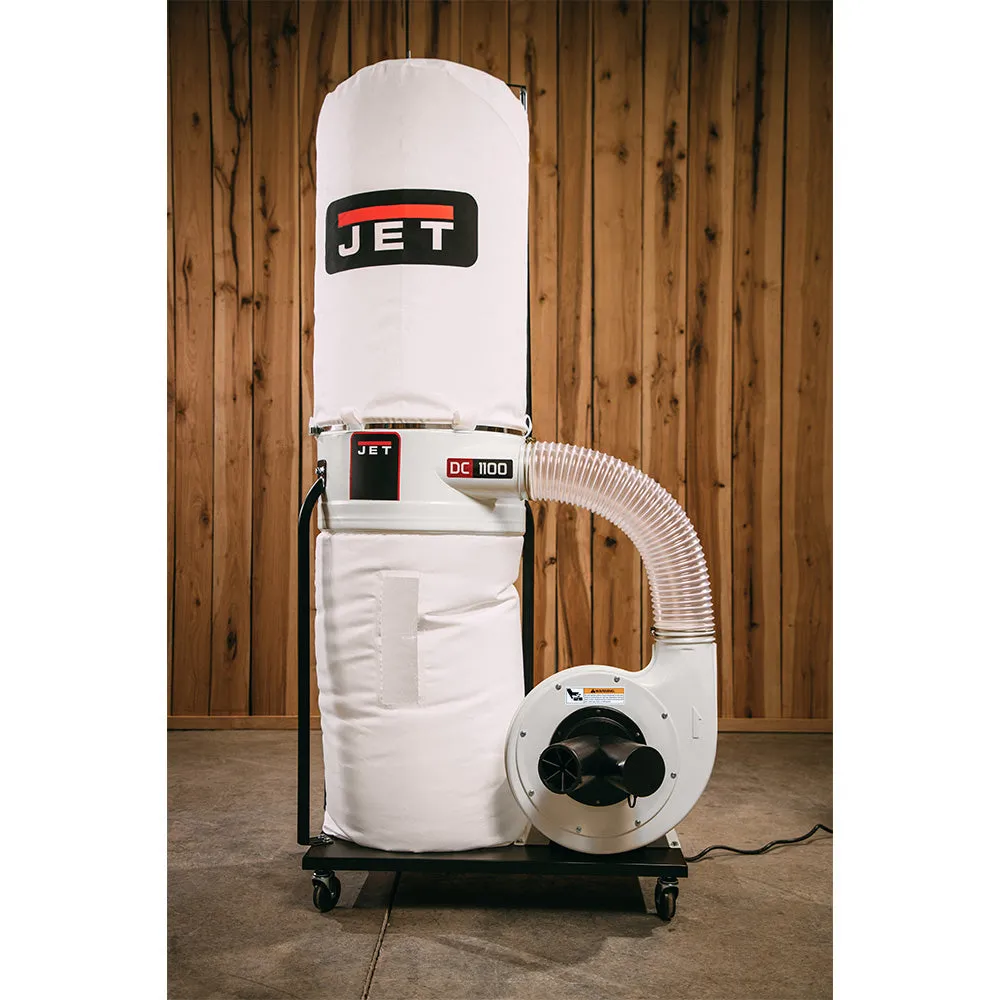

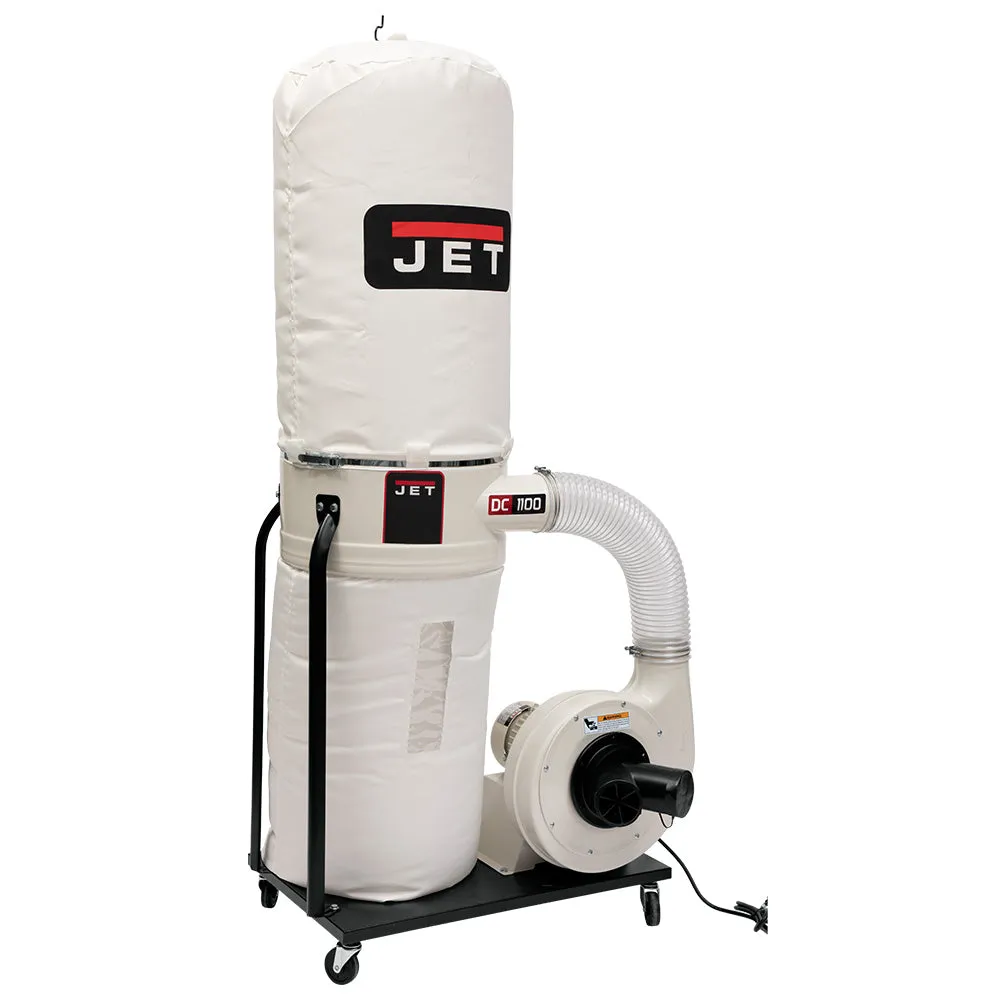

JET DC-1100VX features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have an elastic band for fast installation and removal. Swivel casters offer maneuverability within the shop.
JET warrants every product they sell against manufacturers’ defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
[TABS]
Features

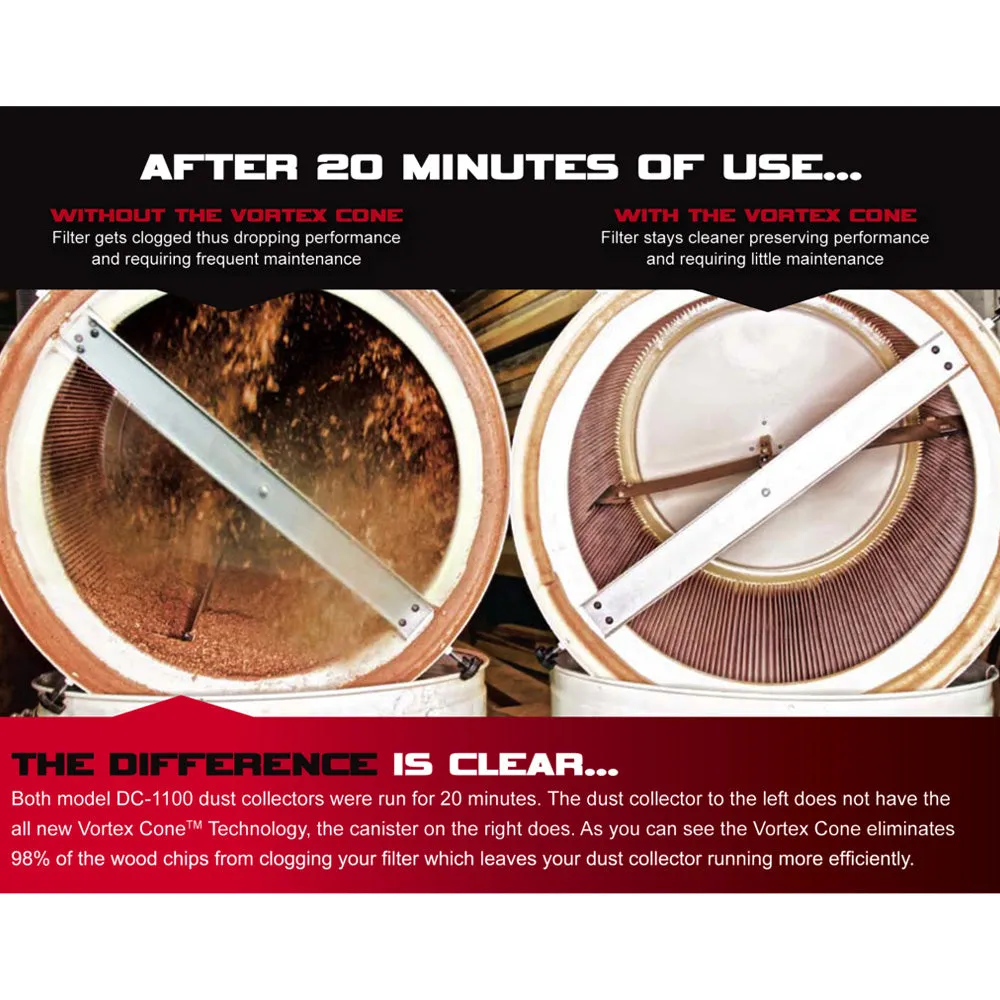

- Eliminates premature filter clogging for sustained performance
- High air velocity (CFM) design stands up to any competitive specifications
- Industrial controls designed for years of trouble-free use
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- Single-stage design for economical and quiet operation

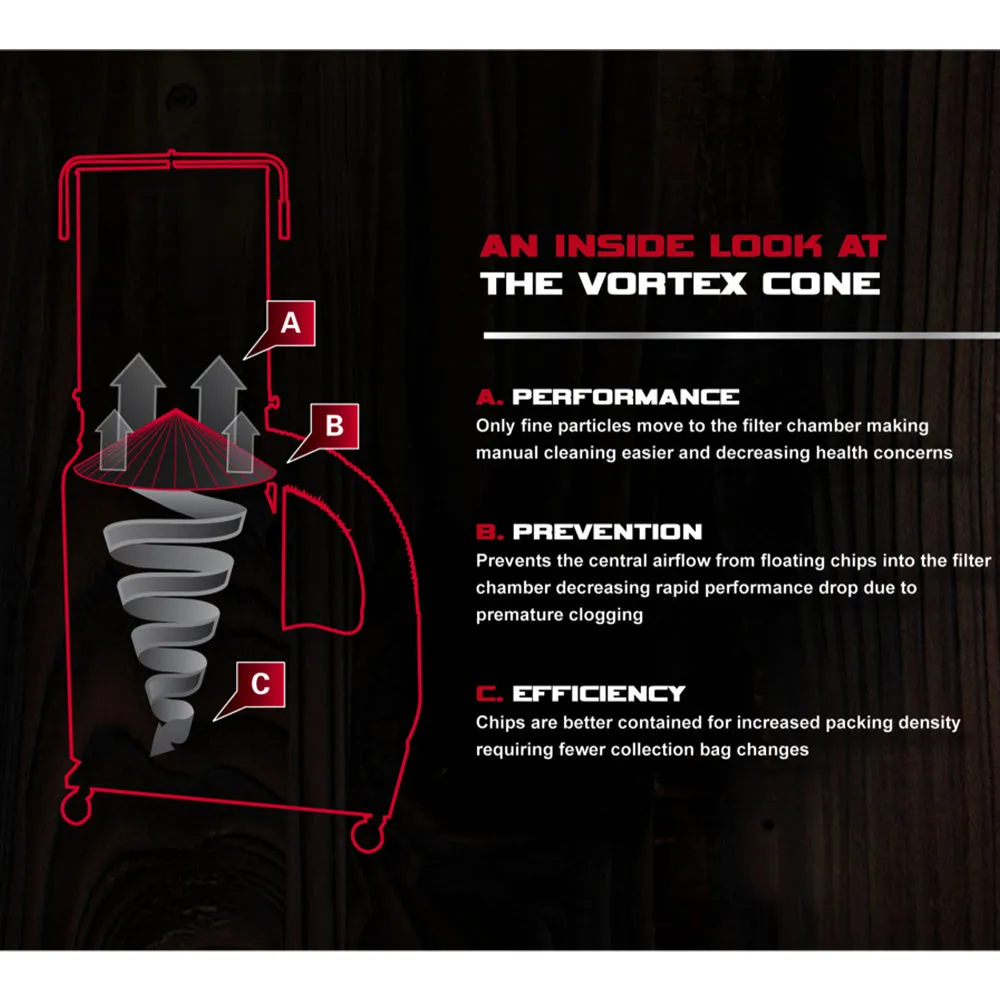

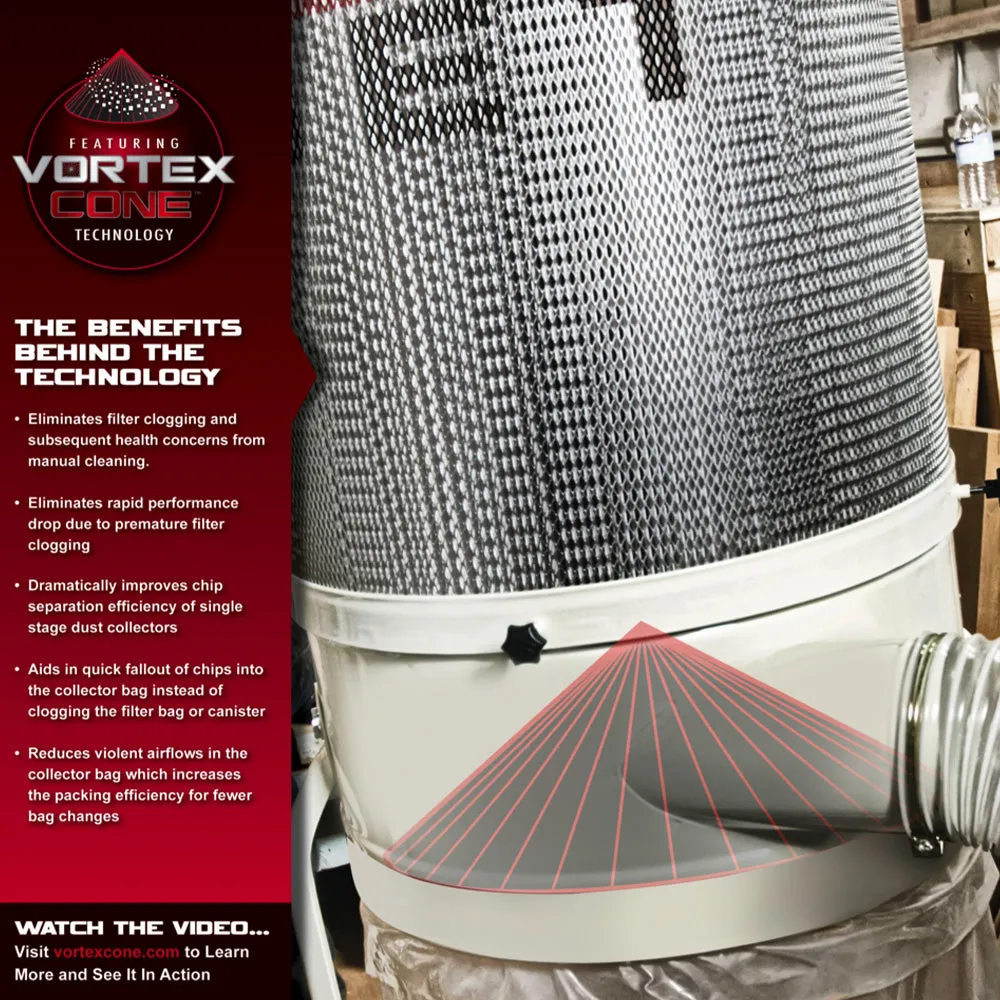

- Vortex Cone improves chip separation and collector bag packing efficiency
Specs
1-Hose Connection Diameter: 6"
2-Hoses Connection Diameter: 4"
Air Flow @ 4" (CFM): 1100
Bag Diameter: 20"
Collection Bag Capacity (Cu. Ft.): 5-3/10
Collection Bag Length: 30"
Efficiency (Micron): 30
Impeller Material: Steel
Motor Amps: 11/5.5
Motor Power: 1-1/2hp
Prewired Voltage: 115V
Sound Rating (Db.): 70 - 80
Static Pressure (Wc.): 10-1/2
Style (Type): Bag
