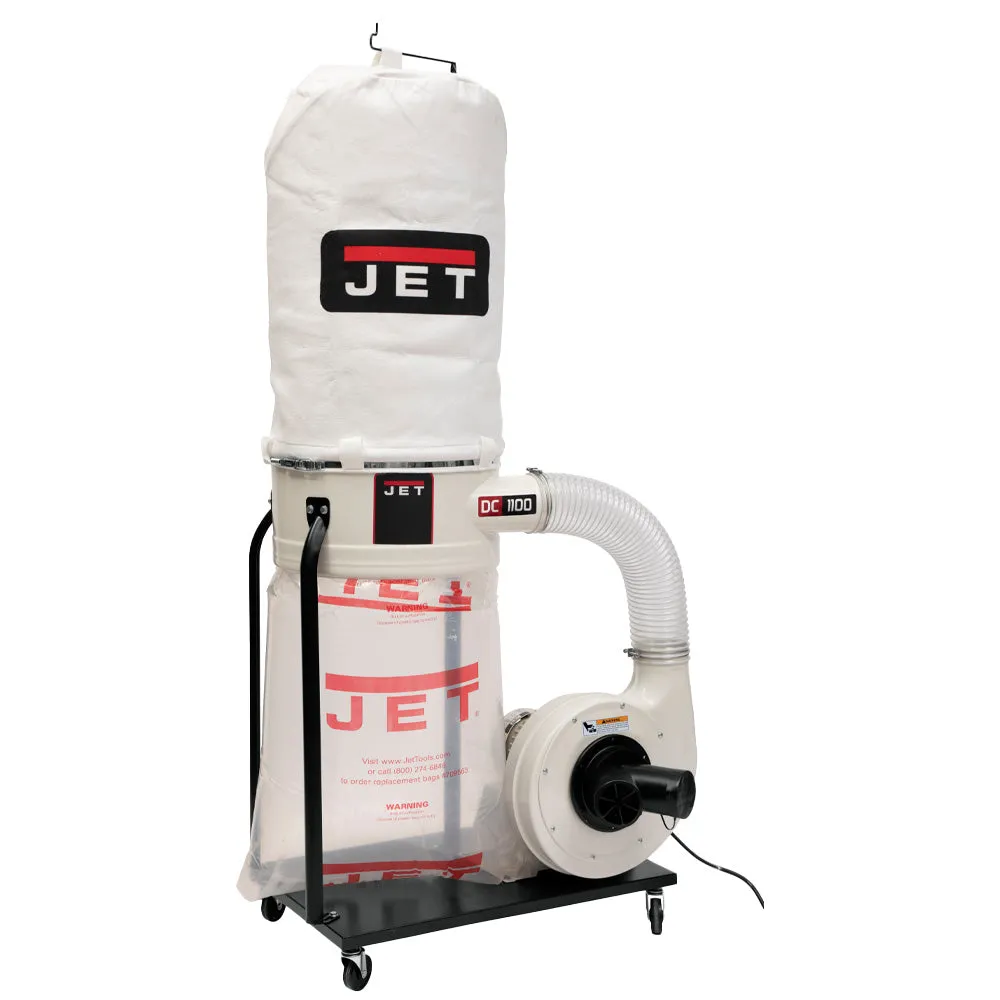

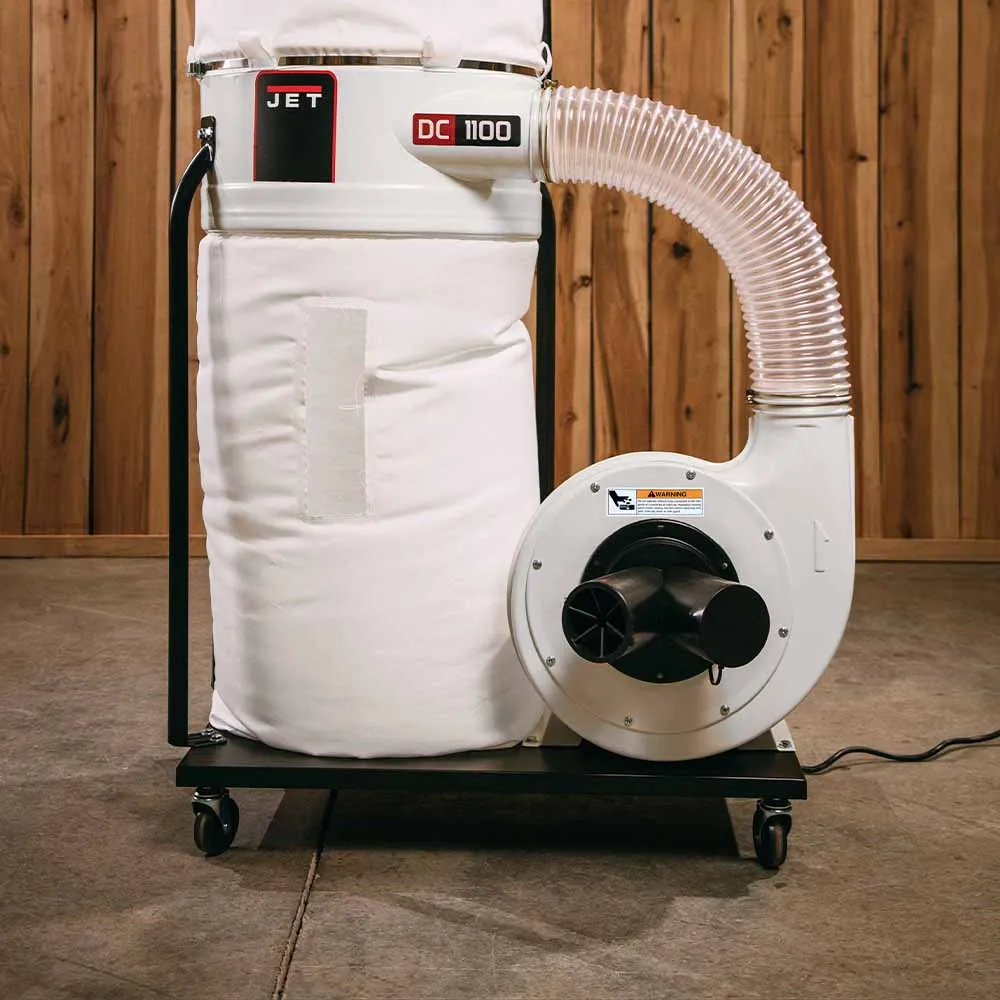

The JET DC-1100VX-5M features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The filter bag captures up to 98% of 5-micron particles. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

JET warrants every product they sell against manufacturers’ defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.

[TABS]

Features

• Eliminates premature filter clogging for sustained performance
• High air velocity (CFM) design stands up to any competitive specifications
• Includes four casters for maneuverability and total portability
• Industrial controls designed for years of trouble-free use
• Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
• Quick-connect collection bags with elastic band for fast, easy installation and removal
• Single-stage design for economical and quiet operation

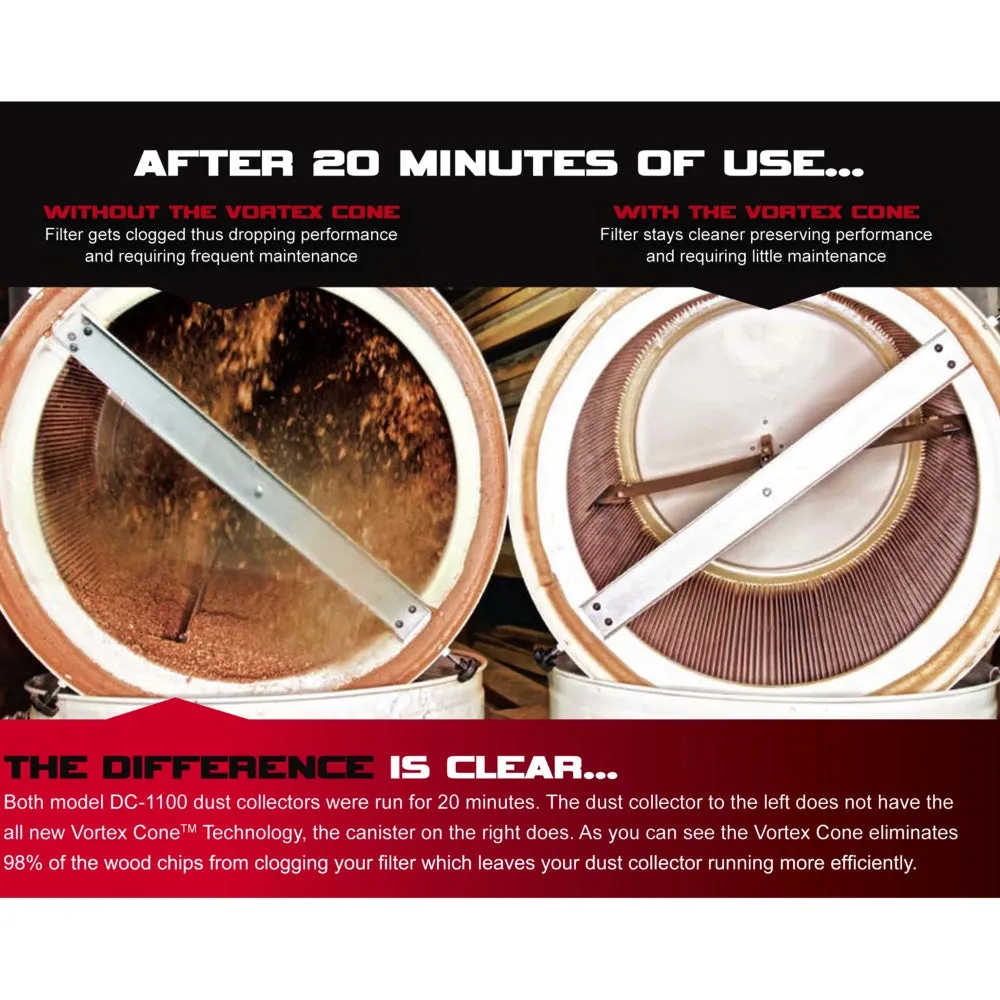

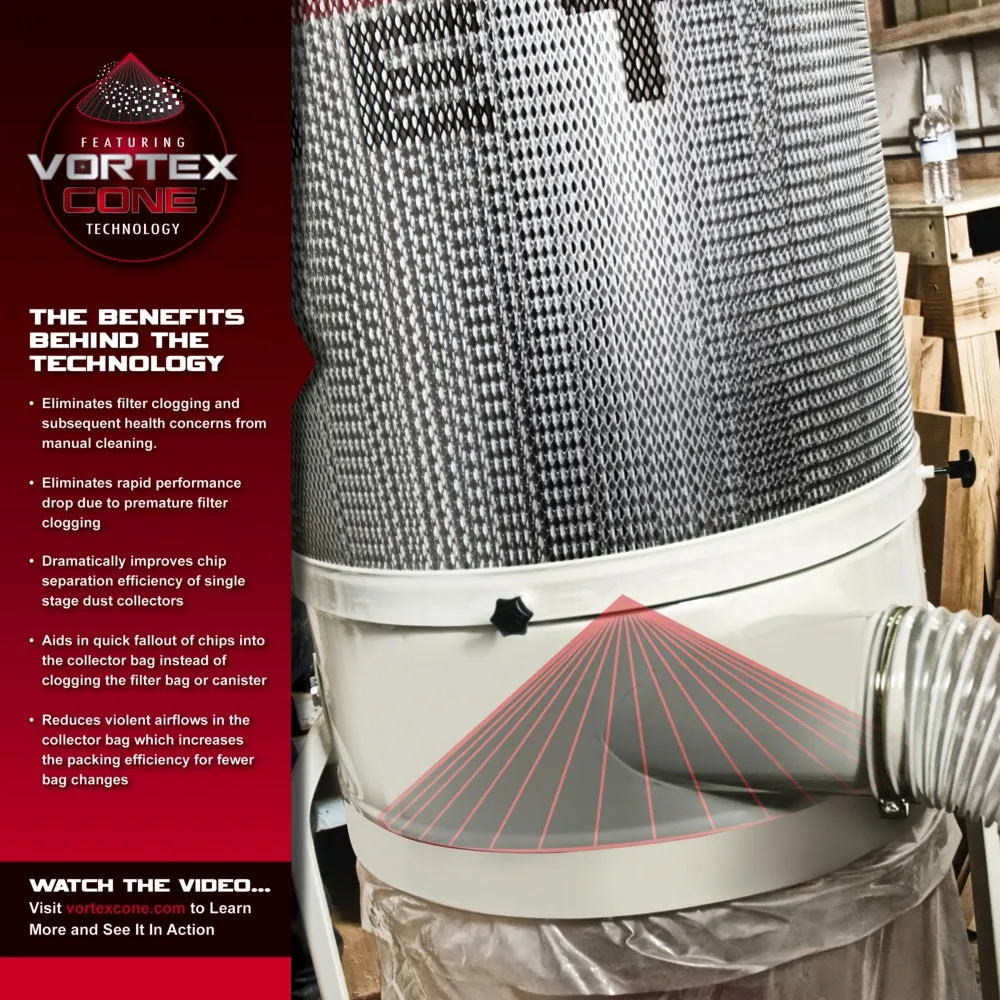

• Vortex Cone improves chip separation and collector bag packing efficiency

Specs

1-Hose Connection Diameter: 6"
2-Hoses Connection Diameter: 4"
Air Flow @ 4" (CFM): 1,100
Bag Diameter: 20"
Collection Bag Capacity (Cu. Ft.): 5-3/10
Collection Bag Length: 30"
Efficiency (Micron): 5
Impeller Material: Steel
Motor Amps: 11/5.5
Motor Phase: 1
Motor Power: 1-1/2hp
Motor Voltage: 115/230V
Net Weight: 103 lbs.
Overall Dimensions (L x W x H): 37" x 28" x 79"
Prewired Voltage: 115V
Sound Rating (Db.): 70 - 80
Static Pressure (Wc.): 10-1/2
Style (Type): Bag
Velocity @ 4" (FPM): 12,571
