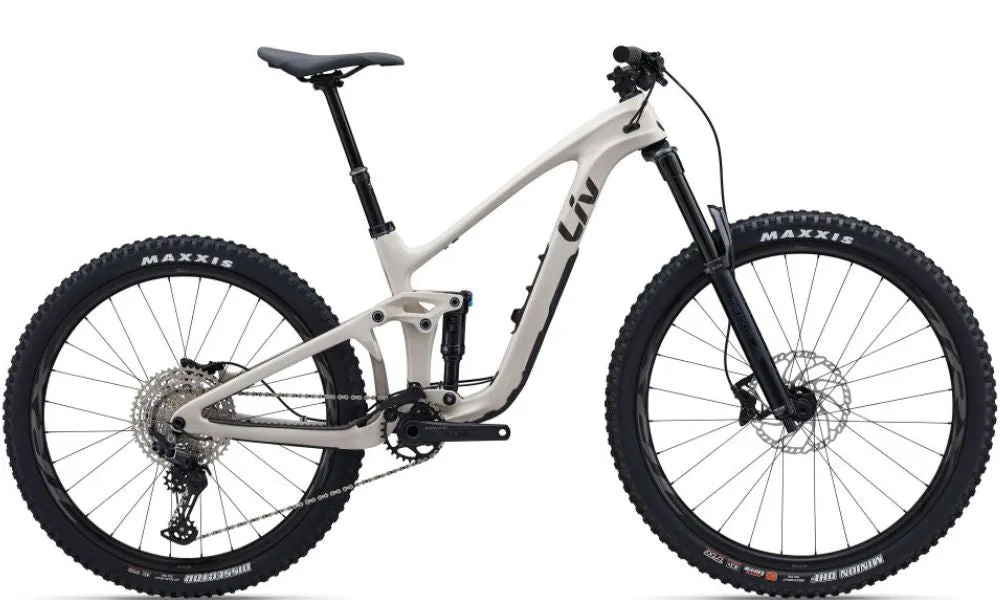

Liv 2024 Intrigue LT Advanced 2
WHETHER YOU'RE LOOKING AHEAD TO PARK DAYS, BACKCOUNTRY SINGLETRACK ADVENTURES, OR YOUR NEXT ENDURO RACE – THE ALL-NEW INTRIGUE LT ADVANCED EQUIPS YOU WITH THE VERSATILITY OF ADJUSTABLE FRAME GEOMETRY, THE EXCEPTIONAL EFFICIENCY OF ADVANCED-GRADE COMPOSITE AND THE ULTRA-SMOOTH PERFORMANCE OF MAESTRO SUSPENSION SO YOU CAN DO WHAT YOU DO BEST – SHRED!
Performance Long Travel Trail
Lightweight Advanced-grade composite frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centred and in control in the corners.
Adjustable Frame Geometry
All-new flip chip – Maestro 3 offers more adjustability allowing you to easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style. *Sizes
Best of Both Wheels
Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimises rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end.
Specifications
Liv 2024 Intrigue LT Advanced 2
Frame
Colour: MushroomFrame: Advanced-Grade Composite front and rear triangles, 150mm Maestro Suspension, flip chip 3 position, integrated downtube storage, 55mm Chainline
Fork: Marzocchi Bomber Z1, 160mm, Rail damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv
Shock: NA
Drivetrain
Crankset: Praxis Cadet HD M24, 32t, 55mm chainline XS:165mm, S:170mm, M:170mm, L:170mmPedals:
Chain: KMC X-12
Bottom Bracket: Praxis, press fit
Rear Derailleur: Shimano Deore, Shadow
Front Derailleur: NA
Derailleur Shifter: Shimano Deore, 1x12
Freewheel/Cassette: Shimano Deore, 10x51
Wheels
Tyres: [F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R, size M and L] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, or [R, size XS and S] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubelessWheels/Rims: Giant TRX 2 Carbon WheelSystem, 30mm inner width XS/S: [F] 29", [R] 27.5" M/L: [F]29", [R]29"
Hubs: [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Braking System
Brakes: Shimano BR-MT420, hydraulic, Shimano RT-56 rotors [F]203mm, [R]180mmBrake Levers: Shimano BL-MT401
Other
Handlebar: Giant Contact TR35, 35mmStem: Giant Contact SL, 35mm XS:40mm, S:50mm, M:50mm, L:50mm
Saddle: Liv Sylvia
Seat Post: TranzX dropper, remote XS: 125mm travel / 30.9 x 390mm S: 125mm travel / 30.9 x 390mm M: 150mm travel / 30.9 x 440mm L: 150mm travel / 30.9 x 440mm
Geometry
Liv 2024 Intrigue LT Advanced 2
| XS | S | M | L | ||
| A | SEAT TUBE LENGTH (mm) | 370 | 390 | 420 | 450 |
| B | SEAT TUBE ANGLE | 76.2° | 76.2° | 77.3° | 77.3° |
| C | TOP TUBE LENGTH (mm) | 552 | 567 | 581 | 603 |
| D | HEAD TUBE LENGTH (mm) | 95 | 95 | 100 | 110 |
| E | HEAD TUBE ANGLE | 64.7° | 64.6° | 64.8° | 64.8° |
| F | FORK RAKE (mm) | 44 | 44 | 44 | 44 |
| G | TRAIL (mm) | 131.0 | 131.6 | 130.6 | 130.5 |
| H | WHEELBASE (mm) | 1166 | 1183 | 1208 | 1232 |
| I | CHAIN STAY LENGTH (mm) | 443 | 443 | 443 | 443 |
| J | BOTTOM BRACKET DROP (mm) | 25 | 24 | 35 | 35 |
| K | STACK (mm) | 629 | 628 | 628 | 637 |
| L | REACH (mm) | 398 | 413 | 439 | 459 |
| M | STAND OVER HEIGHT (mm) | 613 | 674 | 712 | 750 |
| N | HANDLEBAR WIDTH (mm) | 760 | 760 | 760 | 780 |
| O | STEM LENGTH (mm) | 40 | 50 | 50 | 50 |
| P | CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| Q | WHEEL SIZE | [F] 29" [R] 27.5" | [F] 29" [R] 27.5" | [F] 29" [R] 29" | [F] 29" [R] 29" |
