WHETHER YOU'RE LOOKING AHEAD TO PARK DAYS, BACKCOUNTRY SINGLETRACK ADVENTURES, OR YOUR NEXT ENDURO RACE – THE ALL-NEW INTRIGUE LT ADVANCED EQUIPS YOU WITH THE VERSATILITY OF ADJUSTABLE FRAME GEOMETRY, THE EXCEPTIONAL EFFICIENCY OF ADVANCED-GRADE COMPOSITE AND THE ULTRA-SMOOTH PERFORMANCE OF MAESTRO SUSPENSION SO YOU CAN DO WHAT YOU DO BEST – SHRED!
KEY PERFORMANCE FACTORS
Performance Long Travel Trail

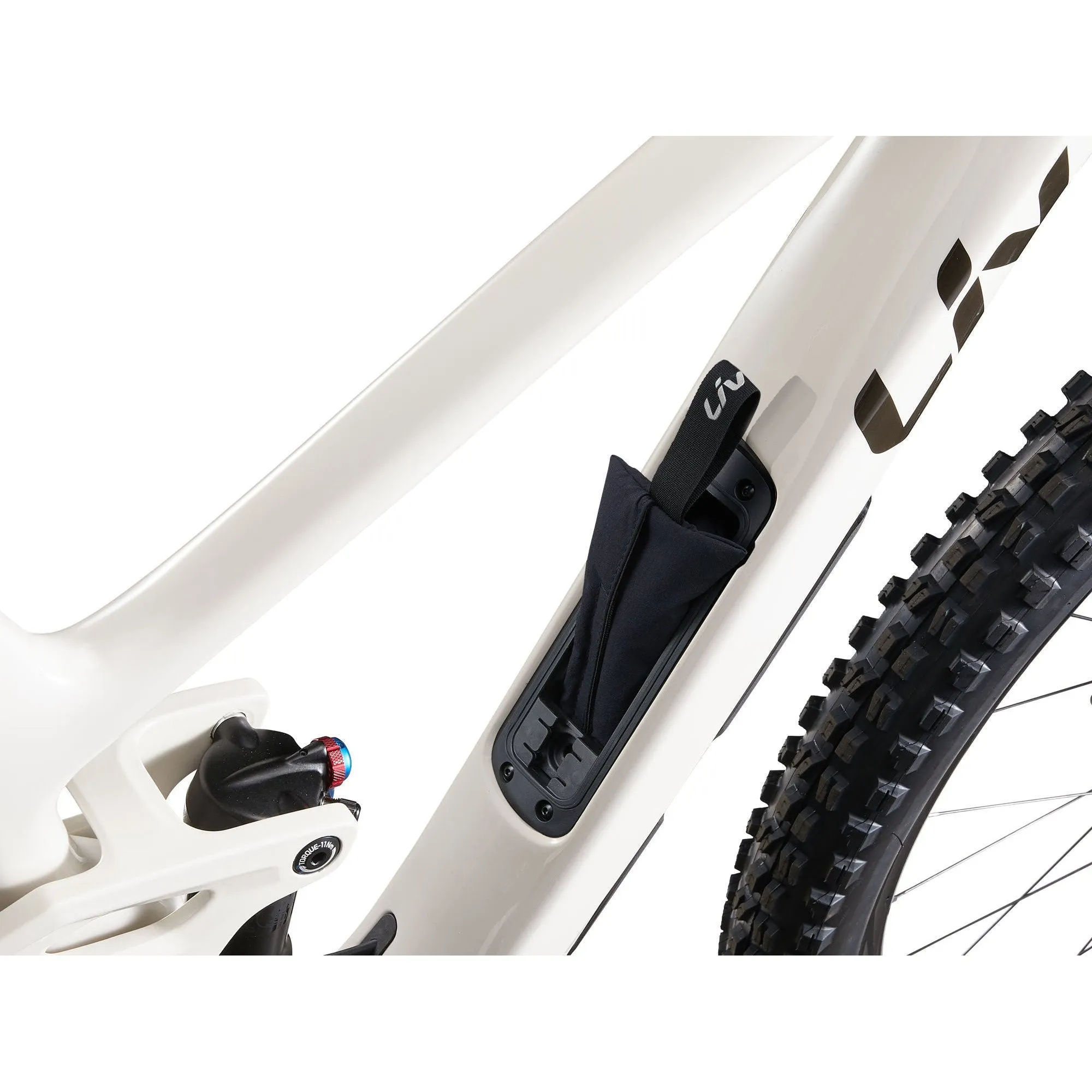

Lightweight Advanced-grade composite frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centred and in control in the corners.
Adjustable Frame Geometry

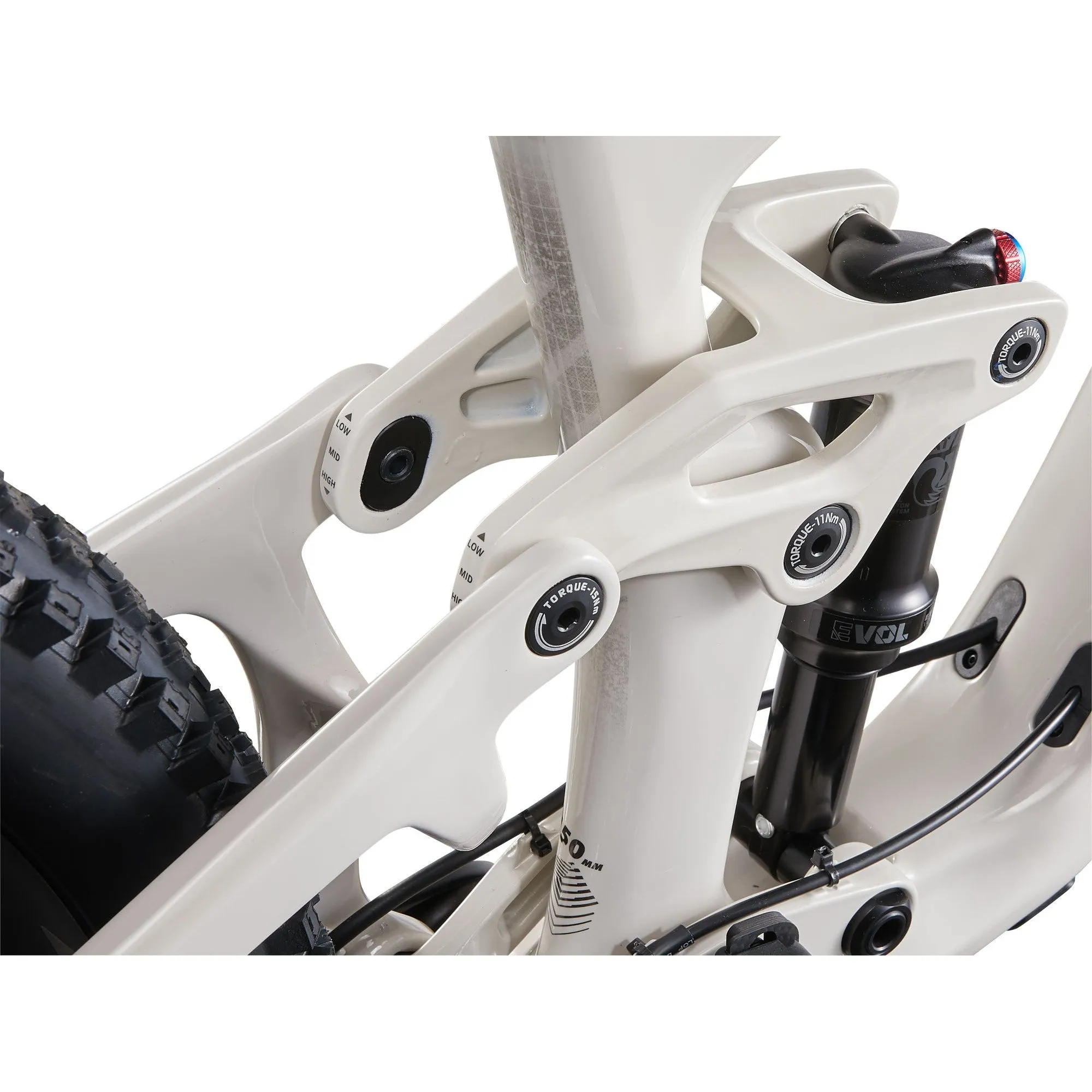

All-new flip chip – Maestro 3 offers more adjustability allowing you to easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style. *Sizes M and L only
Best of Both Wheels
Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimises rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end.
| Sizes | XS, S: (F 29"/R27.5"), M, L: (F/R 29" MX compatible) |
| Colors | Mushroom |
| Frame | Advanced-Grade Composite front and rear triangles, 150mm Maestro Suspension, flip chip 3 position, integrated downtube storage, 55mm Chainline |
| Fork | Marzocchi Bomber Z1, 160mm, Rail damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv |

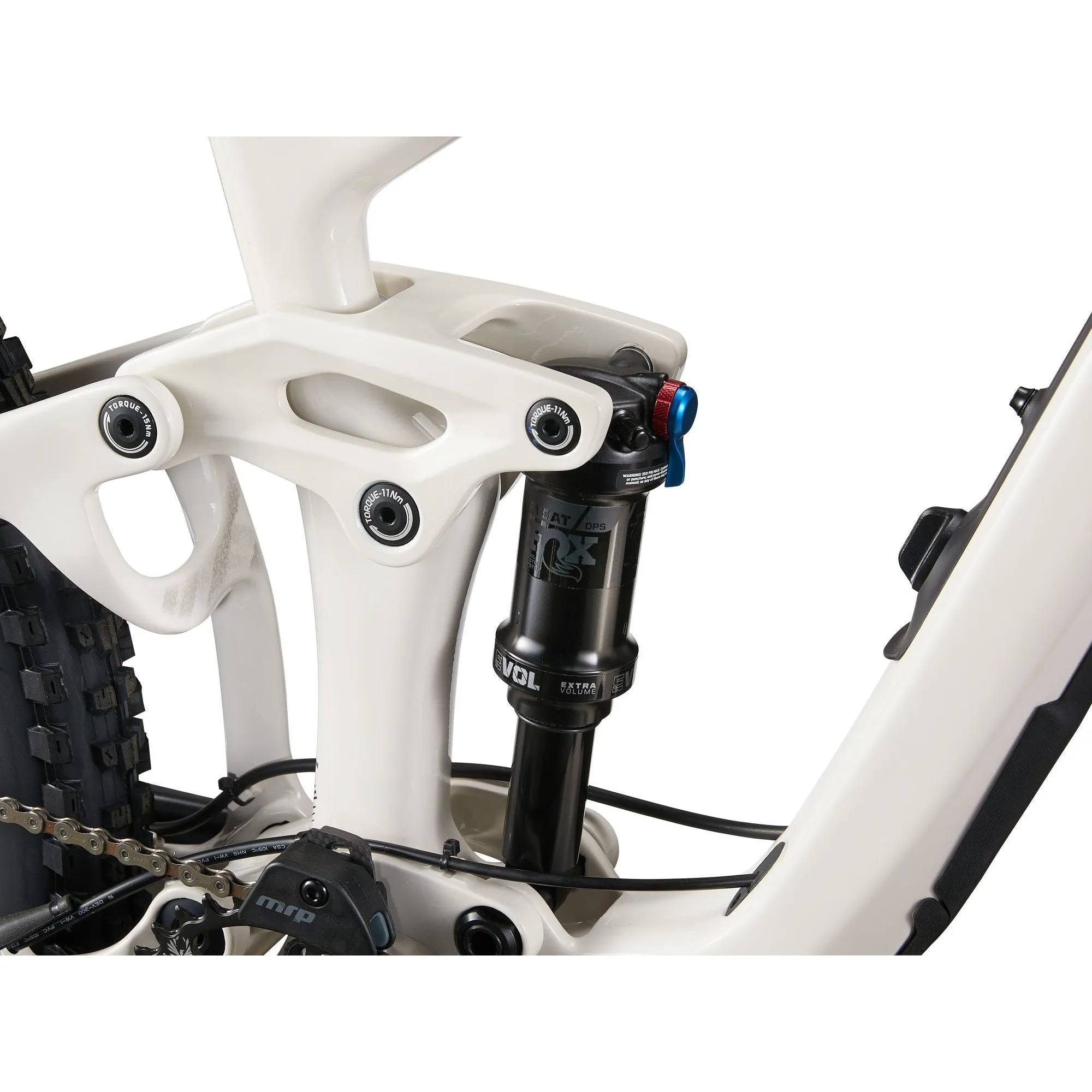

| Shock | Fox Float DPS Performance, custom tuned for Liv |
| Handlebar | Giant Contact TR35, 35mm |
| Stem | Giant Contact SL, 35mm XS:40mm, S:50mm, M:50mm, L:50mm |
| Seatpost | TranzX dropper, remote XS: 125mm travel / 30.9 x 390mm S: 125mm travel / 30.9 x 390mm M: 150mm travel / 30.9 x 440mm L: 150mm travel / 30.9 x 440mm " |
| Saddle | Liv Sylvia |
| Pedals | N/A |
| Shifters | Shimano Deore, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore, Shadow |
| Brakes | Shimano BR-MT420, hydraulic, Shimano RT-56 rotors [F]203mm, [R]180mm |
| Brake Levers | Shimano BL-MT401 |
| Cassette | Shimano Deore, 10x51 |
| Chain | KMC X-12 |
| Crankset | Praxis Cadet HD M24, 32t, 55mm chainline XS:165mm, S:170mm, M:170mm, L:170mm |
| Bottom Bracket | Praxis, press fit |
| Rims | Giant TRX 2 Carbon WheelSystem, 30mm inner width XS/S: [F] 29", [R] 27.5" M/L: [F]29", [R]29" |
| Hubs | [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Sapim |
| Tires | [F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R, size M and L] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, or [R, size XS and S] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Extras | MRP AMG V2 chainguide, 3M tailgate protector, tubeless prepared, max tyre size 2.5", max chainring size 32t |
