WHETHER YOU'RE LOOKING AHEAD TO PARK DAYS, BACKCOUNTRY SINGLETRACK ADVENTURES, OR YOUR NEXT ENDURO RACE – THE ALL-NEW INTRIGUE LT ADVANCED PRO EQUIPS YOU WITH THE VERSATILITY OF ADJUSTABLE FRAME GEOMETRY, THE EXCEPTIONAL EFFICIENCY OF ADVANCED-GRADE COMPOSITE FRAME AND ENOUGH TRAVEL TO TACKLE THE TECHNICAL TERRAIN YOU LOVE.
KEY PERFORMANCE FACTORS
Performance Long Travel Trail

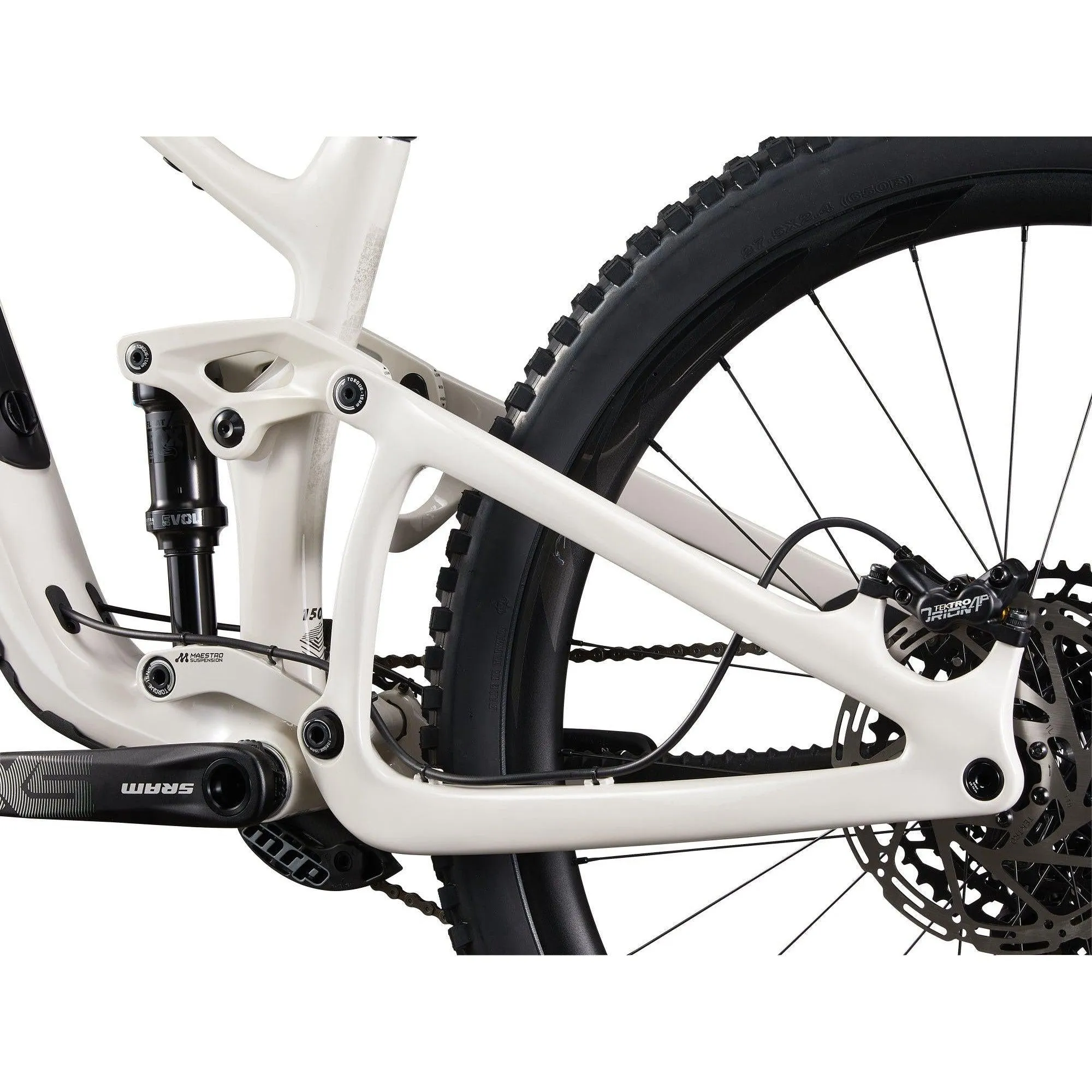

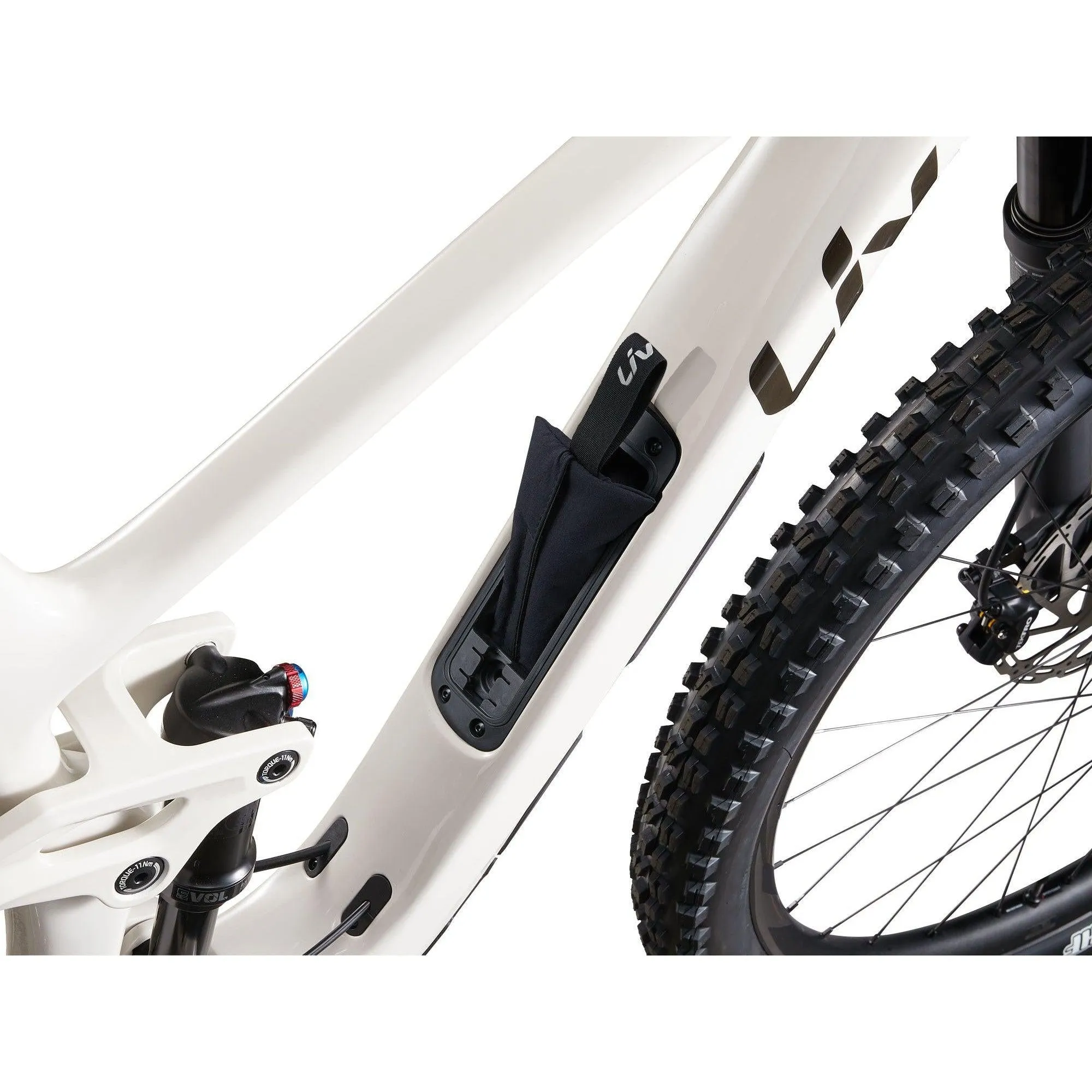

Lightweight Advanced-grade composite frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centered and in control in the corners. The 150mm of Maestro rear wheel suspension has been custom tuned by women who shred, for women who shred. And paired with 160mm of front suspension, you’ve got a bike that is equal parts agile and burly.
Adjustable Frame Geometry
All-new flip chip – Maestro 3 offers more adjustability allowing you to easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style. *Sizes M and L only
Best of Both Wheels
Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimises rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your setup
| Sizes | XS: (F 29"/R27.5"), S: (F 29"/R27.5"): M, L: (F/R 29") , MX compatible |
| Colors | Mushroom |
| Frame | Advanced-Grade Composite front and rear triangles, 150mm Maestro Suspension, flip chip, integrated downtube storage, 55mm Chainline |

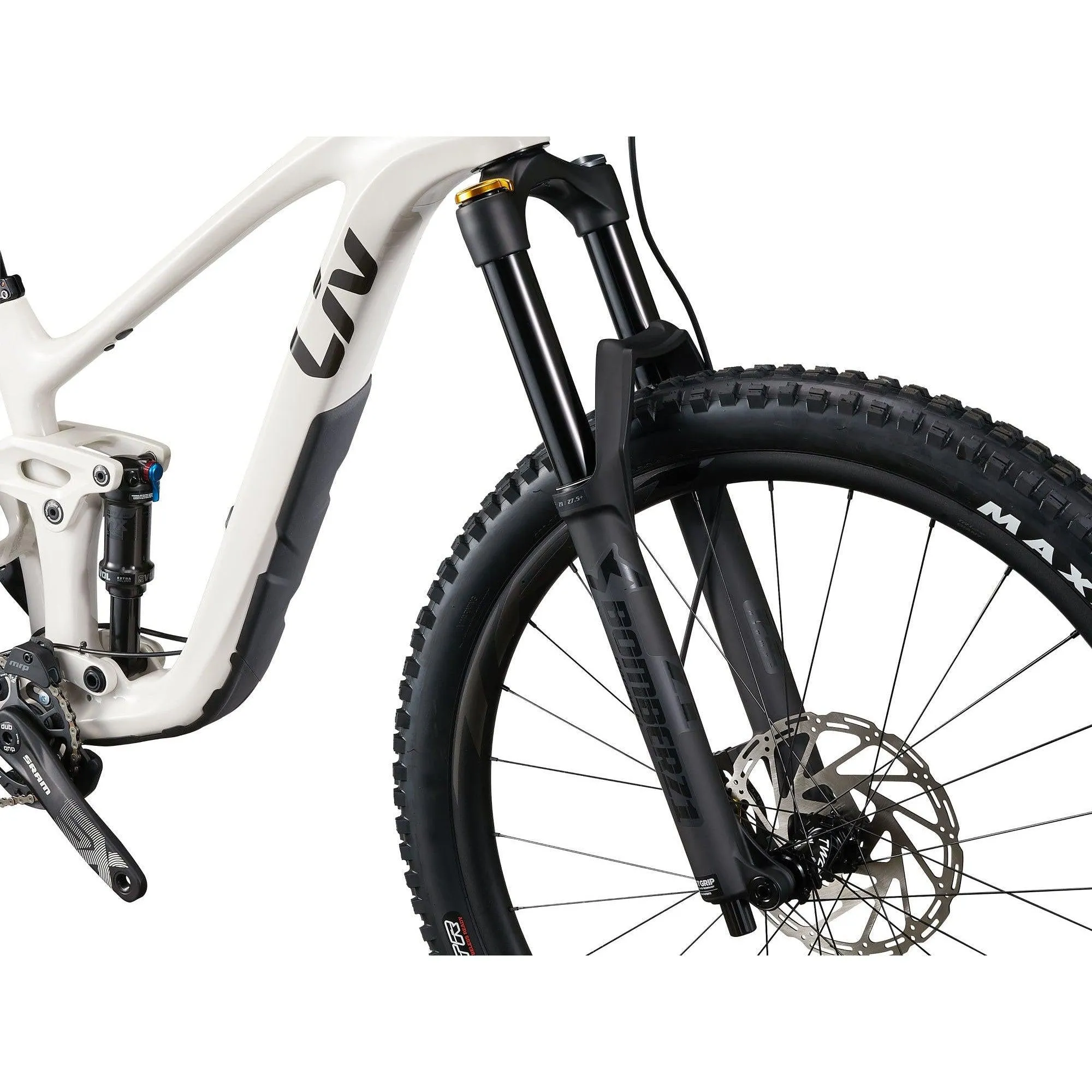

| Fork | Marzocchi Bomber Z1, 160mm, Rail damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv |

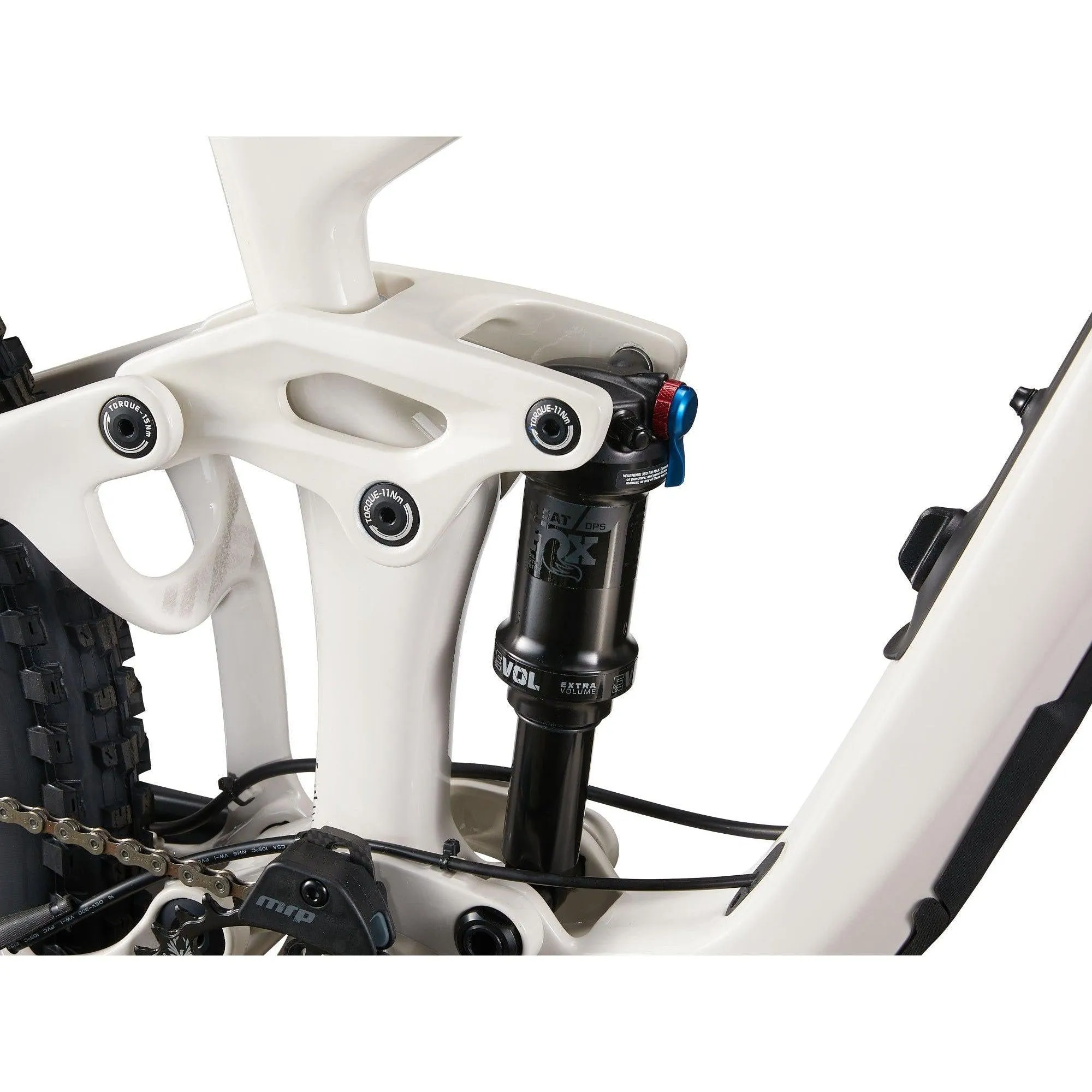

| Shock | Fox Float DPS Performance, custom tuned for Liv |

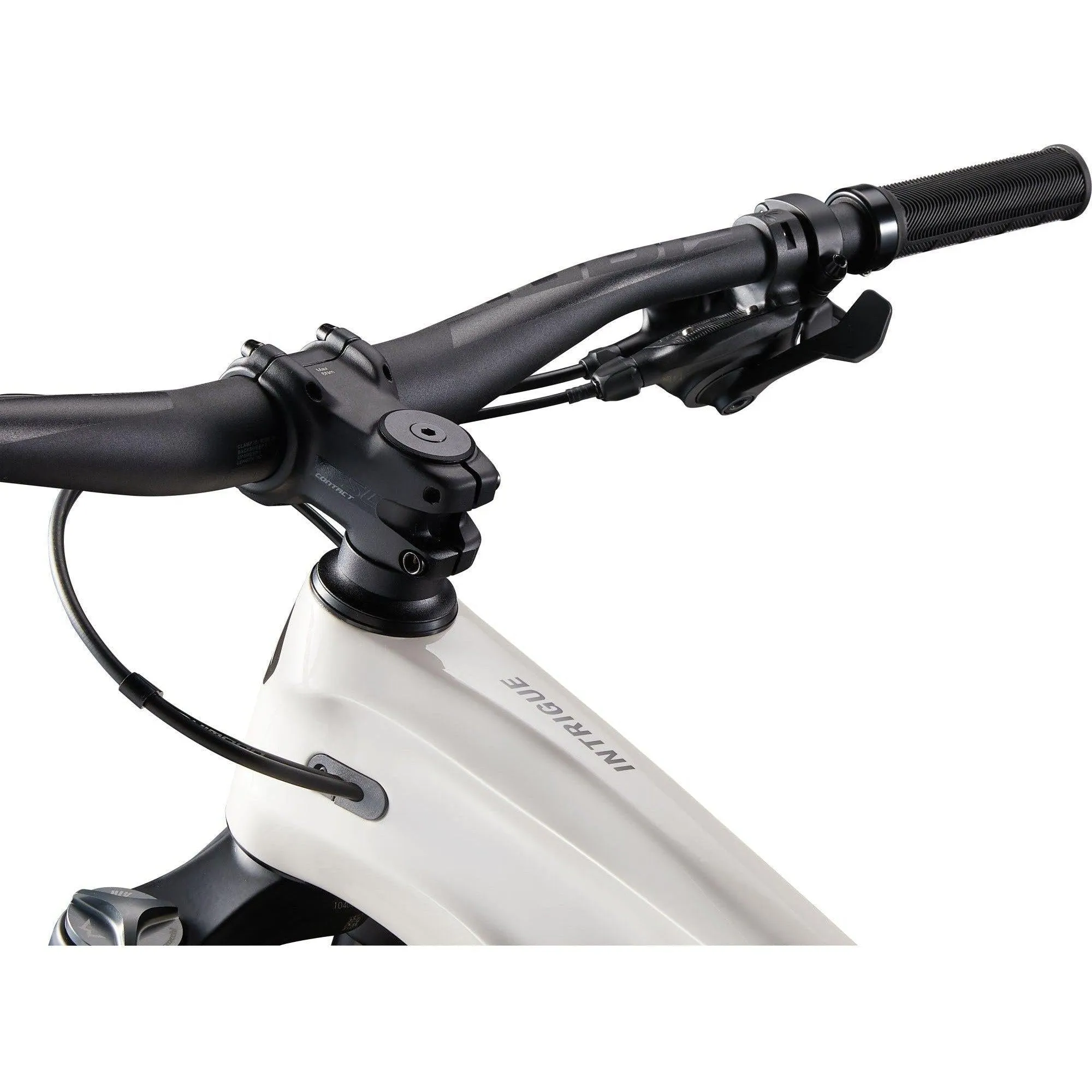

| Handlebar | Giant Contact TR35, 35mm |
| Stem | Giant Contact SL, 35mm XS:40mm, S:50mm, M:50mm, L:50mm |
| Seatpost | TranzX travel-adjustable dropper, remote XS: 120-150mm travel / 30.9 x 459mm S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 140-170mm travel / 30.9 x 499mm |
| Saddle | Liv Sylvia |
| Pedals | N/A |
| Shifters | SRAM SX Eagle, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM SX Eagle |
| Brakes | Tektro M745, hydraulic, Tektro rotors [F]203mm, [R]180mm |
| Brake Levers | Tektro |
| Cassette | SRAM SX Eagle, 11x50 |
| Chain | SRAM SX Eagle |
| Crankset | SRAM SX, 30t, 55mm chainline XS: 165mm, S:170mm, M:170mm, L:170mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant TR 1 29 WheelSystem XS/S: [F] 29", [R] 27.5" M/L: [F]29", [R]29" |
| Hubs | Alloy, sealed bearing |
| Spokes | Sapim |
| Tires | [F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R, size M and L] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, or [R, size XS and S] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Extras | MRP AMg V2 chainguide, 3M tailgate protector, tubeless prepared, max tyre size 2.5", max chainring size 32t |
